firewalld

20 Sep 2017 • Leave Comments

firewalld and iptables
mask iptables service
Install
Status
Runtime and Permanent
service and port
Adding ports
Adding services
Create/modify services
Disallow Ports
Finally
Refs

firewalld and iptables

Firewalld stack
1. iptables CLI -> iptables daemon -> kernel netfilter -> xtables/nftables. We should know the difference between a service and shell command in terms of iptables.

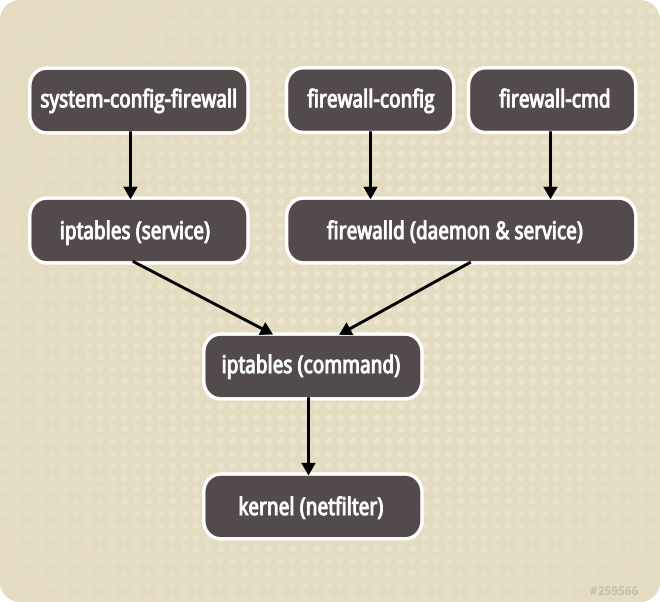

2. firewall-cmd CLI -> firewalld daemon -> iptables/nft CLI. Before firewalld 0.6.0, the underlying is iptables, not it becomes nft. Here is an illustration of before 0.6.0:

  At the very top, sits the GUI tool.
Specially, firewalld introduces zone to defines the level of trust for a connection, IP source or interface, which resembles Microsoft Windows firewall. Rules are created within a zone. A zone is bound to one or more interfaces, IP sources or interfaces, but a connection, interface or IP source can only be part of one zone.

mask iptables service

Switch to firewalld.

~ # systemctl stop iptables-services
~ # sysremctl disable iptables-services
~ # systemctl mask iptables-services

Install

~ # yum install iptables firewalld
~ # systemctl enable firewalld
~ # systemctl start firewalld
~ # systemctl status firewalld

Don't break SSH connection as the default SSH port in default zone is 22 that is usually changed by administrator, otherwise you could no longer SSH into server.

Status

~ # firewall-cmd --reload
~ # firewall-cmd --state

# print zone names
~ # firewall-cmd --get-zones
# print all zone details
~ # firewall-cmd --list-all-zones
# default is 'pulbic'
~ # firewall-cmd --get-default-zone
# zones that has bindings
~ # firewall-cmd --get-active-zone

# print all service names
~ # firewall-cmd --get-services
# print a service detail
~ # firewall-cmd --info-service https

# print objects in a zone
~ # firewall-cmd --zone=public --list-services
~ # firewall-cmd --zone=public --list-ports
~ # firewall-cmd --zone=public --list-interfaces
~ # firewall-cmd --zone=public --list-sources
# print all objects in a zone
~ # firewall-cmd --zone=public --list-all
~ # firewall-cmd --info-zone public

Default zone is public to which unmatched traffic would be applied.

For use in public areas. You do not trust the other computers on networks to not harm your computer. Only selected incoming connections are accepted.
We activate a zone (--get-active-zones) by binding a network interface, source IP address range(s) or ports to it.

As firewalld sites on top of iptables, we can manipulate underlying iptables rules with firewall-cmd directly with the --direct option.

~ # firewall-cmd --direct --get-all-chains
~ # firewall-cmd --direct --get-chains nat

~ # firewall-cmd --direct --get-all-rules
~ # firewall-cmd --direct --get-rules nat

Attention please; do not use iptables command to manipulate firewalld rules as that would make things complicated.

Runtime and Permanent

When updating firewalld rules, option --permanent does not affect runtime rules but write to disk for accross boot.

When changing something, do not add --permanent option and add --timeout option to have a test, especially when you change the SSH port or disallow a port.
After that either execute the update again with the --permanent option or run firewall-cmd --runtime-to-permanent.
Reload rules into runtime if step 1 is skipped.

service and port

Services are pre-defined well-known ports like http, https etc.

Check /usr/lib/firewalld/services XML definitions. You shouldn't edit those files.

To edit a servce (i.e. change ssh port):

Copy /usr/lib/firewalld/services/ssh.xml to /etc/firewalld/services/; change port there.

<?xml version="1.0" encoding="utf-8"?>
<service>
  <short>SSH</short>
  <description>Secure Shell (SSH) is a protocol for logging into and executing commands on remote machines. It provides secure encrypted communications. If you plan on accessing your machine remotely via SSH over a firewalled interface, enable this option. You need the openssh-server package installed for this option to be useful.</description>
  <port protocol="tcp" port="12345"/>
</service>

Alternatively, adding port directly to default zone.

Adding ports

~ # firewall-cmd --zone=public --add-port=12345/tcp
~ # firewall-cmd --reload (opt)

~ # firewall-cmd --permanent --zone=public --add-port=12345/tcp

Take effect immediately at rumtine without reload.
As we have the runtime command at first, no --reload is required.
Take effect accross reload.
--zone can be ommited unless you want to change other zones.

Adding services

 ~ # firewall-cmd --permanent --zone=public --add-service=http --add-service=https

Create/modify services

Only a permanent service can be created.

~ # firewall-cmd --permanent --new-service-from-file=/path/to/service.xml --name=myservice (using an existing service)
# or
~ # firewall-cmd --permanent --new-service=myservice (create an empty service)
~ # firewall-cmd --info-service=myservice

Modify it after creation:

~ # firewall-cmd --permanent --service=myservice --set-description=description
~ # firewall-cmd --permanent --service=myservice --set-short=description
~ # firewall-cmd --permanent --service=myservice --add-port=portid[-portid]/protocol
~ # firewall-cmd --permanent --service=myservice --remove-port=portid[-portid]/protocol
~ # firewall-cmd --info-service=myservice

Adding the new service to a zone:

~ # firewall-cmd --permanent --zone=public --add-service=myservice

I think the easiest way is to copy an existing service XML to /etc/firewalld/services/myservice.xml and edit that file directly.

Disallow Ports

# drop zone
# test
~ # firewall-cmd --zone=drop --add-port=12345/tcp --timeout 5m
# permanent
~ # firewall-cmd --permanent --zone=drop --add-port=12345/tcp

# default zone
# test
~ # firewall-cmd --zone=public --remove-port=12345/tcp --timeout 5m
# permanent
~ # firewall-cmd --permanent --zone=public --add-port=12345/tcp

By default, the drop zone is not activated.

Finally

~ # firewall-cmd --reload
